| DESCRIPTION | MISTRAL 1 KVA | MISTRAL 2 KVA | MISTRAL 3 KVA | MISTRAL 6 KVA | MISTRAL 10 KVA |
| Capacity | 900(W) | 1800(W) | 2700(W) | 5400(W) | 9000(W) |
| INPUT |
| Input voltage | 220/ 230/ 240 Vac ( P+N+T) |
| Operating input voltage | 120 – 276 Vac |
| Operating frequency range | 45 – 55 Hz/ 54 – 66 Hz ± 0.5 Hz |
| Input power factor | ≥ 0.98 | ≥ 0.99 |
| Bypass voltage range | Max voltage.: +15% (optional +15%, +10%, +25%) Min voltage.: -45% (optional -15%, -20%, -30%) Protected frequency range: ±10% | 220V ± 25% (optional +10%, +15%, +20% ) 230: +20% (optional +10%, +15%) 240: +15% (optional +10%) Min voltage: -45% (optional -20%, -30%) |
| Bypass frequency range | ± 10% |
| Total Harmonic Distortion (THD) | ≤ 3% (Linear mode) ≤5% (Non linear mode) | ≤ 3% (100% Linear mode) |
| Generator input | Supported |
| OUTPUT |
| Output voltage | 220/ 230/ 240 Vac (Adjustable) |
| Power factor | 0.9 |
| Voltage regulation | ±2% |
| Frequency (Online mode) | 50 or 60Hz | ±1%/ ±2%/ ±4%/ ±5%/ ±10% Rated frequency (optional) |
| Frequency (Battery mode) | ≤5% (Non linear mode) | 50/ 60 (±0.1) Hz |
| Crest factor | 3:1 |
| Total Harmonic Distortion (THD) | ≤ 2% (Linear mode)/ ≤ 5% (Non linear mode) |
| Wave form | Pure Sinewave |
| BATTERY |
| Battery voltage | Optional voltage (±96/ ±108/ 120 VDC) |
| Typical recharge time | 6-8 hours ( 90% of full capacity) |
| Backup time | Long run unit depends on the capacity of external batteries. Estimated remaining time displayed on front LCD |
| Charge current | Max current: 10A, charge current can be set according to battery capacity installed |
| SYSTEM FEATURES |
| Transfer time | Utility to battery: 0ms – Utility to bypass: 0ms |
| Overload (Linear mode) | Load (≤110% last 60min/ ≤125% last 10min/ ≤150% last 1sec/ >150% turn back to bypass mode |
| Overload (Battery mode) | 10A input breaker | 15A input breaker | 20A input breaker | 40A input breaker | 60A input breaker |
| Short circuit | Hold whole system |
| Overheat | Line mode: switch to bypass – Backup mode: switch down the UPS immediately |
| Low battery voltage | Alarm and switch OFF |
| Self diagnostic | Upon power ON and software control |
| Battery | Advanced (smart) battery management |
| Noise suppression | Complies with EN62040-2 |
| Audible & visual alarms | Line failure, battery low, Overload, system fault |
| Status Led & LCD display | Line mode, backup mode, ECO mode, Bypass mode, Battery low, Battery bad, Overload & UPS fault |
| Reading on the LCD display | Input voltage, Input frequency, Output voltage, Output frequency, Load percentage,Battery voltage, Inner temperature & Remaining battery back-up time |

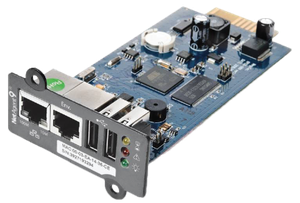

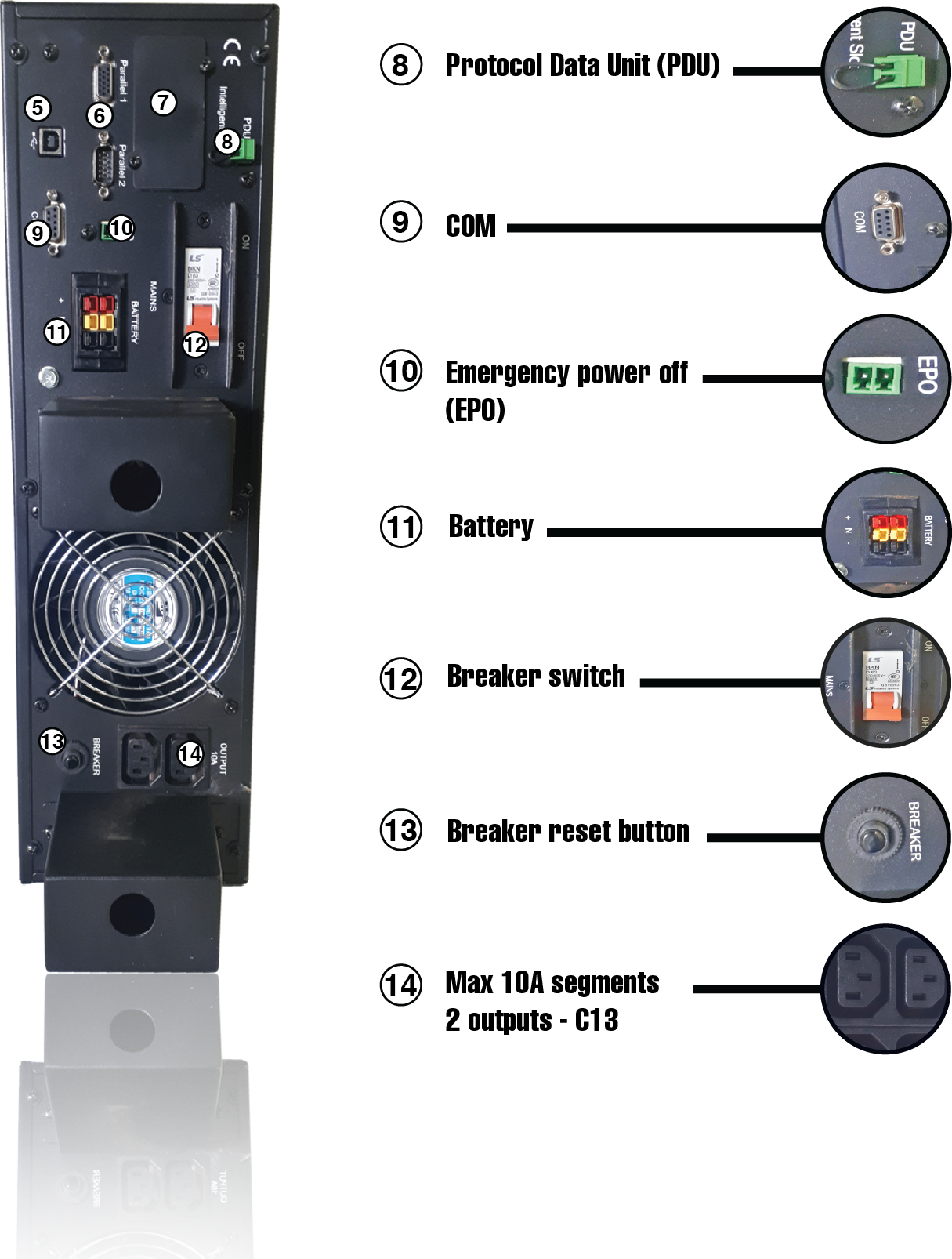

| Communication interface | USB, RS232, Parallel port, SNMP card, Relay card (optional) |
| ENVIRONMENT |
| Operating temperature | 0 - 4 0 °C |
| Storage temperature | -25 °C – 55 °C |
| Humidity range | 0 – 95% (non condensing) |
| Altitude | <1500m |
| Noise level | <55dB |
| PHYSICAL |
| Dimensions (l x h x p) mm | 440x86.5x430 | | 440x86.5x696 | 443 x 131 x 580 (3U) |
| Weight (Kg) | 12 | | 32 | 56 | 62 |
| STANDARDS |
| Security | IEC/ EN62040 – 1 IEC/ EN60950 – 1 |
| EMC | IEC/EN62040-2,IEC6100-4-2,IEC6100-4-3,IEC6100-4-4,IEC6100-4-5, IEC6100-4-6,IEC6100-4-8 |
