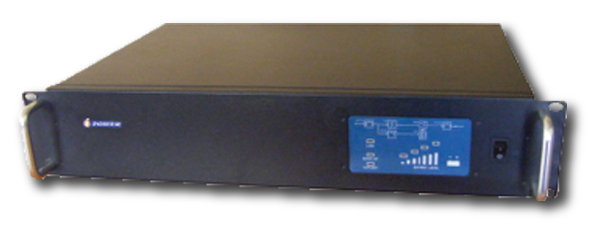

IL Series Line interactive UPS

UPS LINE INTERACTIVE MM

Check the new version : Loo800

Our historical model. Basic Line Interactive with 2 French or English outlets.

Available in 800, 1100 and 2000VA.

Also available in rack model.

Plug and play Line interactive RJ11 English outlet French outlet Rackmount Audible alarm Built in regulator
IL Series
IPower International Ltd
Key Features

Line Interactive technology with AVR (-30% +25%)

Start without the sector

Protection against peaks, drops and voltage increases

Alarms: on batteries, weak sector or overload

Wide input voltage range

Voltage Regulator (AVR) (+/-30%)

Compatible with generators

Low battery and overload alarm

Protection against lightning

Available in French or English outlets

RJ11 telephone protection

Also available in rack format

Work station

Personal computer

The cheapest rackmount on the market

No documents available

No products available

ModelIL800IL1100IL1100 RackIL2000 Rack
Rated power750VA950VA1100VA1900VA
Power360W480W600W1200W
Input
PhaseMono phase
Input Voltage230/240 VAC nominal -30%+25%
Frequency50 ou 60 Hz
Output
SinusoidSinusoïdal AC Mode, Pseudo sinusoïdal Battery Mode
FrequencyIn AC Mode as the sector, in battery modde 50+/- 0.5Hz
Transfer TimeT<2ms
Surge Protection320 joules
Output Voltage220V +/- 5%
Protection
InputCompatible with IEEE587
Short circuitFuse
Batterie
TypeValve regulated lead acid, maintenance-free
Recharge90% after 8hrs of charge
Autonomy>8min
Number and type of batteries1 X 12V/5A1 X 12V/7A2 X 12V/7A2 X 12V/9A
Indication
LightOn mains: Solid green/On batteries: Flashing green
Sound SignalOn battery, Low battery and overcharging
Power Factor0,45
Others
Number of decibels<45 dB
Temperature0-40
Humidity0%-90%
Weight in Kg18
Dimension Packaging340x220x140 mm
