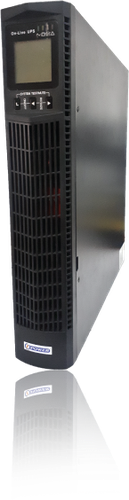

Mistral Series Online UPS

Old versions
IP Compact Zephyr

Online Double Conversion

This UPS series is a single phase in, single phase out high frequency online UPS.

It provides four (4) capacities: 1, 3, 6 and 10 KVA.

These equipments are modularized and adopt the N+1 redundancy. It can flexibly increase the number of the UPS modules according to the load capacity which is convenient for flexible allocation and gradually investment for 6 and 10 KVA only.

The UPS can solve most of the power supply problems, such as blackout, over-voltage, under-voltage, voltage sudden drop, oscillating of decreasing extent, high voltage pulse, voltage fluctuation, surge, inrush
current, harmonic distortion (THD), noise interference, frequency fluctuation, etc..



This UPS can be applied to different applications from computer device, automatic equipment, communication system to industry equipment.

Standards

  • Standards (Surge Suppressions): EN 61000-2-2/ EN61000-4-2, Level 4/ EN 61000-4-3, Level 3/ EN 61000-4-4, Level 4 (also on signal ports)/ EN 6100-4-5, Level 4 Criteria A
  • Standards (EMC Certification): CE per IEC/EN 62040-2/ Class B
  • Standards (EMC 62040-2:2006
  • Safety conformance: IEC 62040-1-1
  • Agency marking: CE

  • Transport icon
  • SOHO icon
  • E-Medical icon
  • Industry icon
  • Emergency icon
  • Data center icon
Contact us - +23059409268 - Start chat
Network Equipment
Network Equipment
Banking Institution
Banking Institution
Hospitality
Hospitality
Data Centers
Data Centers
Domestic Use
Domestic Use
Communication systems
Communication Systems
Server Rooms
Server Rooms
Industrial Environment
Industrial Environment
Workstation
Workstation
INdustrial Environment
Textile Factories
Automation
Automation

Rotating display screen

With LCD plus LED displays, the user may easily get UPS status and its operational parameters, such as input/output voltage, frequency & load%, battery % and ambient temperature, etc..

Additional batteries / batteries hot swap

Hot-Swap battery allows you change battery/ies in a UPS without shutting down the load. A maximum of four (4) battery cabinets can be added in the UPS (Plug and Play)Each External Battery Cabinet (EBC) include its own charger.

UPS monitoring and automatic shutdown software

The software is compatible with Novell Netware, Windows 2000/XP/Vista/7, Windows server 2003/2008/2012, Linux, FreeBSD and Mac. Support SEC Protocol & USB Interface.

Intelligent port slots

The use of the SNMP agent, BMS and AS 400 makes it easier in management features such as: • Setting up and programming extinctions etc.

Digital Control

This series UPS is controlled by Digital Signal Processor (DSP); hence, it increases reliability, performance, self proteciton, self-diagnostics and so on.

Rack and Tower

The machine can be installed in both horizontal (rack) and vertical (tower) position depending on the user. It is a 2-in-1 design for a simplified installation.

Intelligence charging method

The series UPS adopts three-stage charging method: advanced 1 st stage: 2 nd stage: 3 rd stage: High current constant current charging to guarantee to charge back to 90%. Constant Voltage in order to vitalize battery and make sure batteries are fully charged. This series UPS is controlled by Digital Signal Processor (DSP); hence, it increases reliability, performance, self proteciton, self-diagnos

1 phase in / 1 phase out

It is 1-Phase In/ 1Phase Out high-density UPS system, of which input current is kept in balance. No unbalance problem might occur.

Rails (options)

4-Post Rack-Mount Installation of Mistrals • Supports UPS systems in 4-post rackmount applications • Temporary placement pegs smplifies single-person installation

Emergency power off (EPO)

The Emergency Power Off (EPO) button, also called an EPO switch or EPO panel, is a safety measure for quickly disconnecting electrical power to a particular piece of equipment, or to an entire facility, in the event of an emergency
