Roland VersaUV Wide format printers

Promotional Items

With the ability to print CMYK, White and Gloss inks directly around the curves and contours of three-dimensional objects, the LEF-12i is ideally suited for personalizing pens, golf balls, key chains and other promotional items. Variable data printing allows you to individualize each item with names, photos and other custom design elements.

Electronic Devices

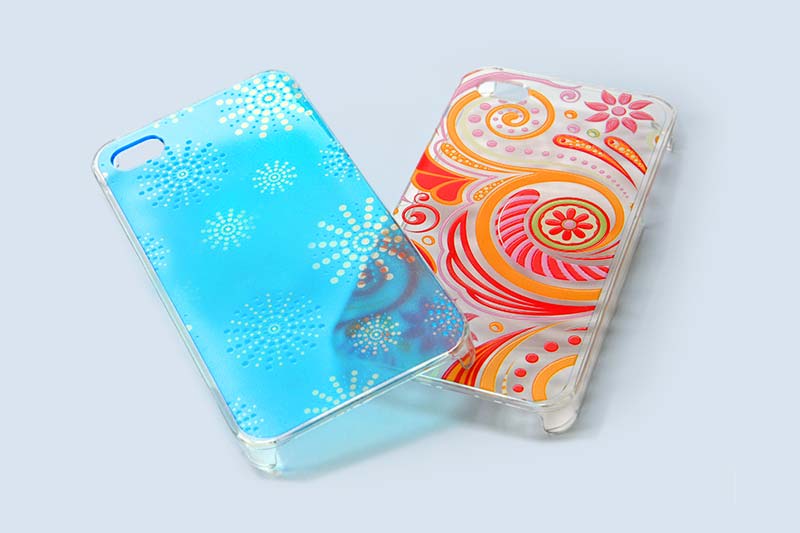

Low-heat LED curing systems make the LEF-12i ideal for printing on sensitive electronic devices, including tablets and smartphones. High-opacity White ink produces bright, crisp white text and graphics, and can also be printed as an undercoat to enhance full-color graphics on clear acrylics and darker plastics.

Giftware

With the LEF-12i, you can print directly on gift items ranging from jewelry and accessories to photo frames, wedding favors, dishware and even fabric items such as leather wallets and purses. Add interesting patterns and textures to your designs with layers of Gloss ink in matte or gloss.

Awards

The LEF-12i is the perfect additions to awards and recognition businesses, allowing these shops to add full-color graphics to engraved items for high-impact results. White ink allows you to print on clear acrylic awards as well as dark-colored plaques. Gloss ink adds elegant embossing and varnishing effects for a premium presentation.

Consumer and Industrial Products

For product designers, entrepreneurs and marketing professionals, the LEF-12i customizes a wide variety of products from toys and sports items to cosmetic cases and control panels. Variable data printing allows you to mark each product or part with individual serial and lot numbers.

Small signage

With the LEF-12i, you can create ADA signs as well as specialized signs for car doors, windows and interior spaces. Print directly on wood and other specialty materials for a truly unique look.

The VersaUV LEF-12i offers countless product customization and substrate possibilities, including printing directly on three-dimensional objects up to 3.94” thick.

No documents available

No products available

The Wonder of ECO-UV Ink

Available in CMYK, White and Gloss, ECO-UV ink offers the following benefits:

  • Clean and efficient 220ml cartridges
  • Instantly dries to produce mess-free, wide color gamut results
  • Ink prints around curves and irregular surfaces without cracking
  • Produces durable indoor graphics with scratch and chemical resistance
  • Outdoor graphics last from six months to two years when Gloss coat is applied

Ink Efficiency and Consistency

The LEF-12i has an Automated Ink Circulation System for the white ink channel that helps to maintain a consistent white point and opacity, even on long print runs. Controlled ink circulation ensures that ink pigments can’t settle in the ink lines, resulting in smooth ink consistency and density.

Mist Filters for Clean and Clear Printing

To ensure optimum print quality when printing around curves, mist filters have been added to the LEF-12i to collect the residual ink-mist when printing off the edge or curve of an item. This reduces overspray and stops ink from settling on internal parts. Filters are designed to be easily replaceable by the end user.

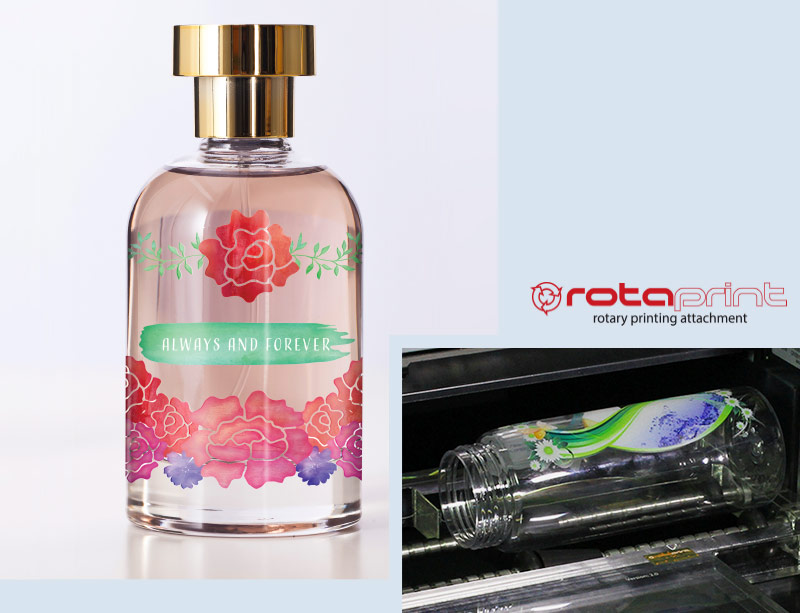

Rotaprint

Printing white and CMYK onto bottles and cylindrical objects is an absolute snap with the new RotaPrint attachment for the VersaUV LEF-12i flatbed printer. Simple to install and remove, it utilizes the LEF-12i’s existing feed system and enables the LEF to print cleanly and precisely onto a wide range of materials with a diameter between 1.6 to 3 inches (40 mm to 77 mm).

With its sturdy build, RotaPrint is also consistently and reliably accurate, ensuring precise stepping during rotation.

Specifications

Model VersaUV LEF-12i
Printing methodPiezo ink-jet method
Acceptable mediaWidthMaximum 12.2 inches (310mm)
LengthMaximum 13.2 inches (335mm)
ThicknessMaximum 3.94 inches (100mm)
WeightMaximum 11 lbs (5Kg)
Printing WidthMaximum 12 inches (305mm)
Printing Length Maximum 11 inches (280mm)
Ink cartridgesTypeECO-UV 220ml cartridge
ColorsSix colors CMYK, White, Gloss
Ink-Curing UnitBuilt-in UV-LED lamp
Print Resolution (dpi)Maximum 1440 dpi
Distance accuracy (when printing) *1Error of less than ±0.3% distance ±0.3mm, whichever is greater
ConnectivityEthernet (10Base-T/100Base-TX, automatic switching)
Power-saving functionAutomatic sleep feature
Power requirements

AC 100 to 240V ±10%, 1.8A (50/60Hz)
Power Consumption During operationApproximately 149W
 During standbyApproximately 13W
Acoustic noise level During operation 60 dB (A) or less
 During standby 49 dB (A) or less
Dimensions

 Width39.3 inches (998 mm)
 Depth34.2 inches (867 mm)
 Height 21.5 inches (546mm)
Weight 187.4 lb (85kg)
Environment During Operation *2Temperature:20 to 32°C or 68 to 90°F
(22° or 72°F or higher is recommended)
Humidity: 20 to 80% RH (no condensation)
 Not operatingTemperature: 5 to 40°C or 41 to 104°F
Humidity: 20 to 80% RH (no condensation)

*2 Operating environment

Roland VersaWorks 6 System Requirements
Operating systemWindows® 10 (32/64-bit)
Windows® 8.1 (32/64-bit)
Windows® 7 Professional / Ultimate (32/64-bit)
CPUIntel® Core™2 Duo, 2.0 GHz or faster recommended
RAM2 GB or more recommended
Video card and monitorA resolution of 1,280 x 1,024 or more recommended
Free hard-disk space40 GB or more recommended
Hard-disk file systemNTFS format
Optical driveDVD-ROM drive
Other requirementsEthernet or USB port
Internet connection and web browser to use Roland@NET
