Roland LASER LD-80 Wide format printers

So Many Profitable Personalisation Opportunities

An industry-first in personalisation, the LD-80 Laser Decorators offer a unique opportunity for your brand, kiosk, gift shop, online store or personalisation business to create exciting new customised products with dazzling text and reflective graphics.

Notepads and Planners
Personalise stationery items such as A4 portfolios, notebooks and journals with names and designs.
Electronic Accessories
Create fun items or company branded products by adding logos and designs to phone pop-ups, power banks, USB plugs and more.



Cards
Customise plastic cards and other items using specific films and serial data to create exclusive membership items.


Phone Cases
Use foil for stunning patterns and customised phone cases.
Pens and office items
Personalise pens and other office items.


Gift boxes and Packaging
Personalise gift boxes and packaging with professional designs, text and company branding.
Cosmetics
Personalise lipsticks and other cosmetic products.


Glasses and Cases
Brand high value fashion items like sunglasses and customise leather goods with ease.
LD-80

Simply enter your personalised text, upload a graphic and with precision and ease, your unique designs are transferred onto leather1, polycarbonate, acrylic and other plastics. Easy to use and safe to operate, these Class 1 laser devices can heat transfer metallised foils onto gifts, promotional giveaways, merchandise and so much more. With our laser decorators, you’ll take objects from average to amazing in minutes.

No documents available

No products available



Metallised Foil

Inexpensive hot-foil stamp material is available in a range of colours and types and combines with the LD-80 or LD-300 for unique customisation results.

Foil Transfer on Soft Plastics with Precise Results

The LD-80 uses semi-conductor laser transfer technology to apply heat activated adhesive foil to a variety of heat-resistant and soft plastics including; acrylic, polycarbonate, polypropylene, polystyrene, and ABS2. The pinpoint accuracy of the semi-conductor laser paired with a high-quality transfer foil can create designs as small as a fraction of a millimetre!


Safe Operation

The laser used in the LD-80 conforms to the safest “Class 1” standard*. When the cover opens the laser supply turns off so it can be used in a retail setting without any danger of exposure. In addition, our unique method of laser decoration creates no dust or gas. *IEC 60825-1.

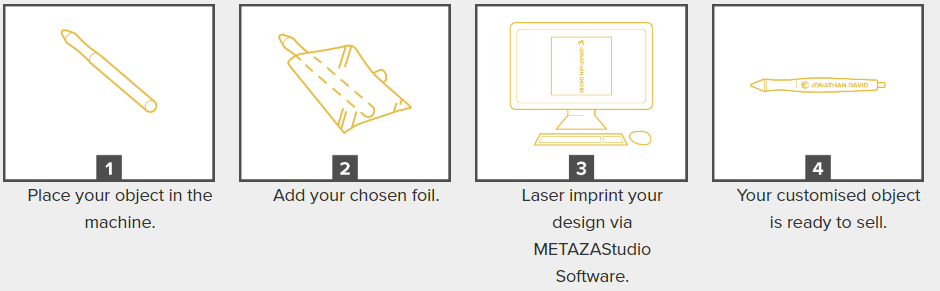

Produce Unique Customised Products in 4 Easy steps

The DGSHAPE LD-80 is incredibly economic and easy to use, using an advanced digital process for foil transfer customisation. When compared to traditional hot-foil stamping methods and laser engraving technology, they are less complicated, cleaner and a safer personalisation option.

Specifications

ModelLD-80*
Imprintable materials**Acrylic, Polycarbonate, Polypropylene, Polystyrene and ABS
Loadable material width and height/thicknessMax. 100 (W) x 200 (D) x 20 (H) mm
or 180 (W) x 100 (D) x 20 (H) mm

Design optionsVector/outline, region fill (scan line, island fill), text, illustration
Imprint areaMax.

80 (W) x 80 (D) mm




 Recommended: 50 (W) × 50 (D) mm
Resolution 353 dpi (text), 1058 dpi (vector)
Direction of transcriptionUnidirectional imprinting or bidirectional imprinting
(selectable with Windows driver)

Print speed 24 mm/s


InterfaceUSB
Power requirementsDedicated AC adapter:AC 100 to 240 V ±10%, 50/60Hz
Main unit:DC 19V, 1.0A
Power consumptionApprox. 14W
Acoustic noise level70 dB (A) or less)
Environment Temperature10 to 30 °C (50 to 86 °F)
 Humidity 35 to 80% (no condensation)
Dimensions286 (W) x 383 (D) x 308 (H) mm
Weight12 kg
Light sourceFor imprinting (foil transfer)Class 4 laser*; wavelength:450nm; dispersion: 23 degrees; pulse width repeatability: 167.5 μ sec, 4kHz; max. output:1.6W
For positioningClass 1 laser, wavelength: 655nm
Safety devicesInterlockWhen the cover opens, the laser power supply turns off


CoverLight-blocking cover
Included itemsSoftware Package CD,  AC adapter, power cable, USB cable, setup guide, material retainer, film retainer, etc.
System requirements for USB connection
Operating systemWindows®7 or better (32-bit or 64-bit)
USB cableUse the included USB cable



Accessories

 LD-80
Item ModelDescription
Replacement lens set*HL-801 lens
Thermal transfer film*

AL-80 135 mm x 135 mm size, 5 sheets
Foil for laminates - GoldDF-8079LG  80mm X 120M 1 roll
Foil for laminates -SilverDF-8047LS 80mm X 120M 1 roll
Foil for plastics - GoldDF-8079PG

 80mm X 120M 1 roll
Foil for plastics -SilverDF-8047PS 80mm X 120M 1 roll
