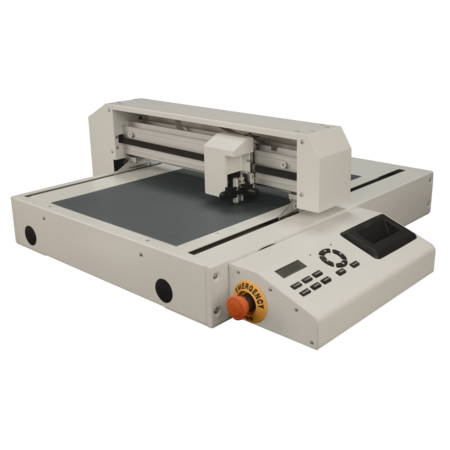

Secabo FC50 Flatbed Cutter with DrawCut PRO

The flatbed cutting plotter Secabo FC50 including software is ideally suited for the production of small series and design samples. The compact desktop device offers a maximum working area of 35cm x 52cm and reliably fixes the applied material on a vacuum table. The underlying felt mat allows smooth work even with complete material averages. As an alternative to the drag knife, there are two groove and groove tools in different sizes. Thus, depending on the paper thickness, the right tool is available to cut out objects with exact contour and to create grooves or folded edges. The multilingual cutting software DrawCut PRO and the multi-registration mark recognition system LAPOS Q are included in delivery and support professional results.

Technical Data

Secabo FC100 Flatbed Cutter with DrawCut PRO

The Secabo FC100 flatbed plotter including software is ideal for the production of small and medium-sized series productions and design samples. The free-standing unit with particularly quiet vacuum pump offers a maximum working area of 78cm x 108 cm and reliably fixes the placed material on the vacuum table. The underlaid felt mat allows smooth working even with complete material diameters. As an alternative to the drag knife, two grooving and creasing tools in different sizes are included. Depending on the paper thickness, the appropriate tool is thus available to cut out objects with exact contours and to create grooves or folding edges. The multilingual cutting software DrawCut PRO and the multi-pass mark recognition system LAPOS Q are included and support professional results.

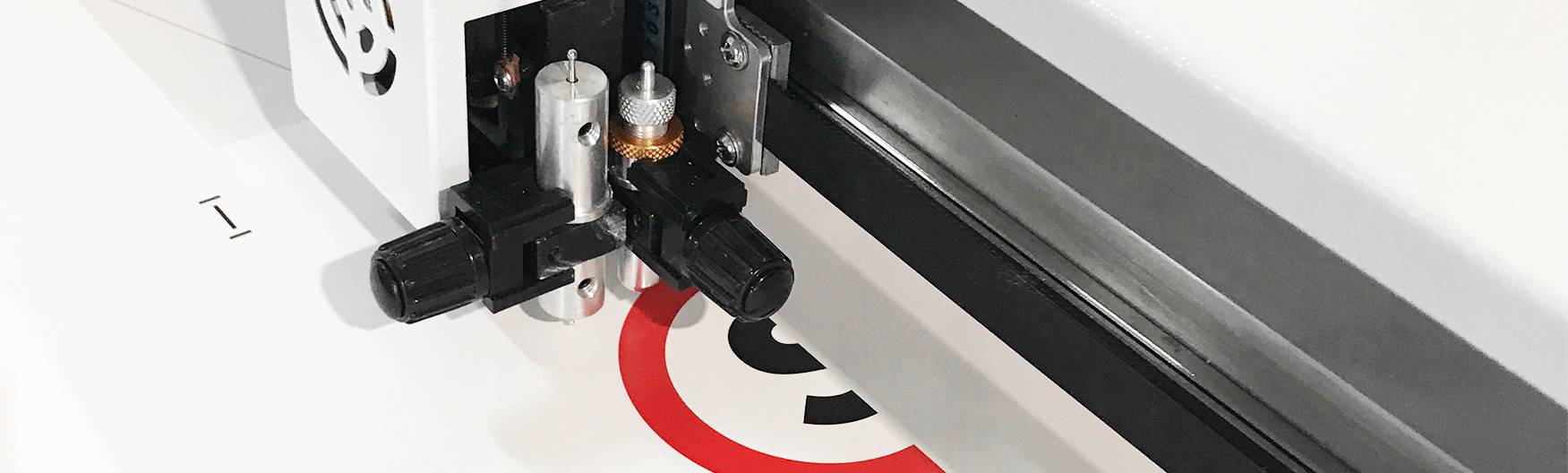

Multi-pass mark recognition system LAPOS Q - Precision meets performance

LAPOS Q is the fastest and most convenient sequential multi-register mark recognition system in the world. Paper, cardboard, stickers, labels and other media can be cut out to exact contours in free forms and even with the largest plots. The register marks are read in segment by segment as required, so the precision remains the same over the course of a large plot. Contour cut jobs can be read in easily by barcode.

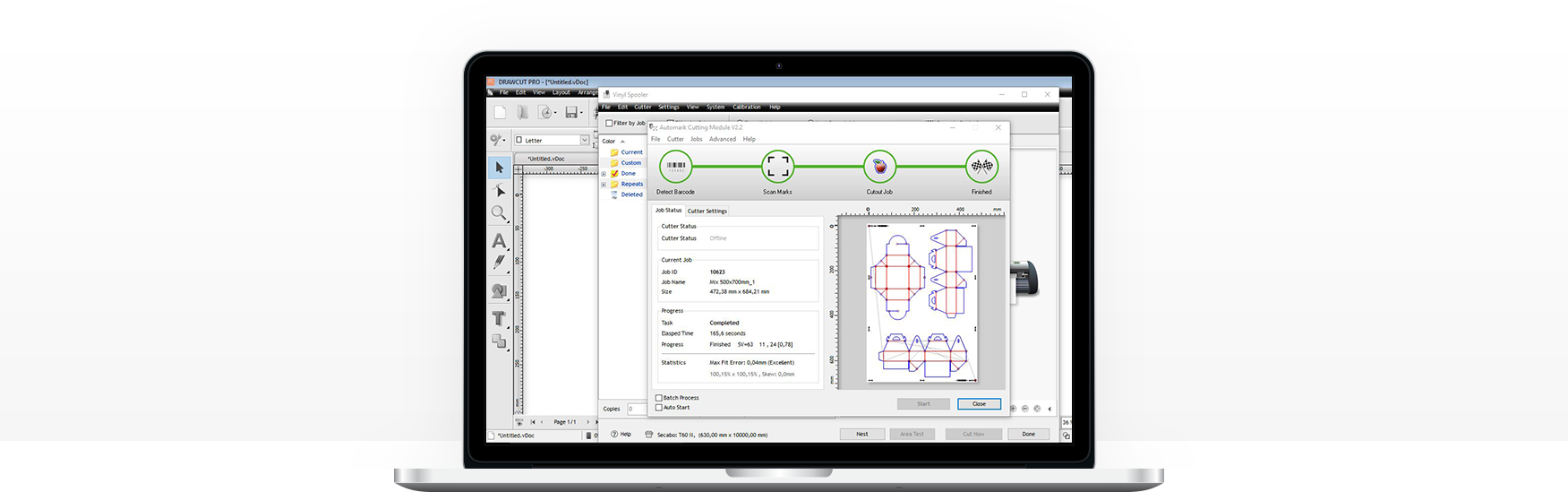

DrawCut PRO cutting software - standard on board!

The multilingual professional cutting software DrawCut PRO for Windows is included in the scope of delivery. It not only reliably handles design and layout tasks and imports a wealth of graphic file formats, but also directs the Print&Cut applications of LAPOS Q, including the automatic generation of cutting contours and groove lines for your flatbed cutting plotter. DrawCut PRO has a unique vectorization algorithm for converting pixel graphics into path files and provides extensive text, shading and outline functions for the user.

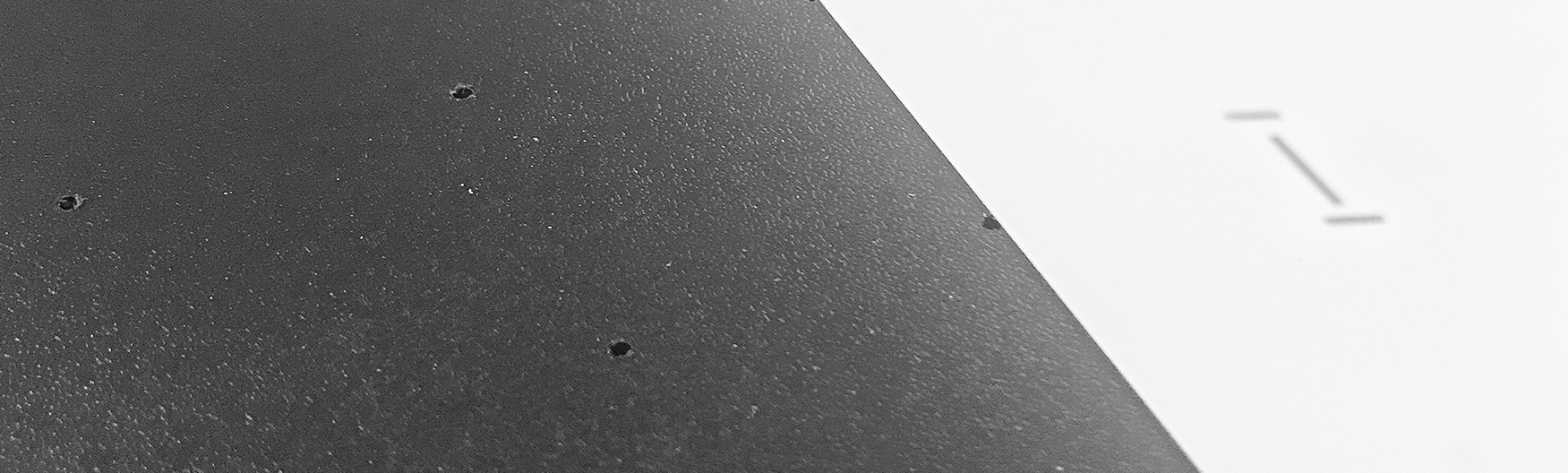

Vacuum table for best fixation of your cutting objects

Both the FC50 and FC100 are fitted with vacuum tables as standard, which ensure that your cutting objects are securely fixed in place by means of the vacuum pumps that are also supplied. There are two different cutting supports to choose from, which provide the vacuum - depending on the application - more diffusely or with pinpoint accuracy.

Features

LAPOS Q

State-of-the-art contour cutting function for Print&Cut applications, automatic continuous recognition of register marks

DrawCut PRO

DrawCut PRO included - with control for LAPOS XPT, vectorization, text to path, shading, etc.

Plug and play

Everything you need to operate the device is included in the scope of delivery.

servo drives

silent, precise and powerful servo drives for best cutting results

high precision

High precision for cutting of smallest fonts and objects.

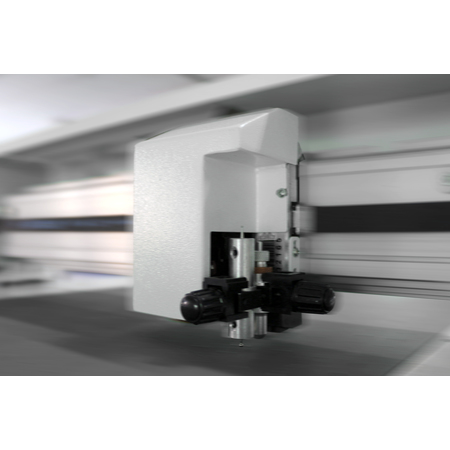

Cutting and creasing

Two tools are available for cutting and creasing, i. e. adding folding edges to the object within the same operation.
