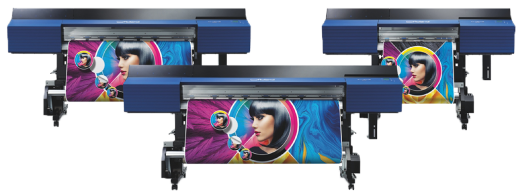

| Model | SG2-640 | SG2-540 | SG2-300 |
| Printing method | Piezo ink-jet method |
| Media | Width | 315 to 1625 mm (12.4 to 64 in.) | 275 to 1371 mm (10.8 to 54 in.) | 182 to 762 mm (7.2 to 30 in.) |
| Thickness | Max. 1.0 mm (39 mil) with liner for printing. Max. 0.4 mm (16mil) with liner and 0.22 mm (9 mil) without liner, for cutting |
| Roll outer diameter | Max. 210 mm (8.3 in.) |
| Roll weight | Max. 40 kg (88 lb.) | Max. 30 kg (66 lb) | Max. 25 kg (55 lb.) |
| Core diameter (1) | 76.2 mm (3 in.) or 50.8 mm (2 in.) |
| Printing / cutting width (2) | Max. 1600 mm (63 in.) | Max. 1346 mm (53 in.) | Max. 736 mm (29 in.) |
| Ink | Type | TrueVIS INK TR2 500 cc pouch |
| Colours | Four colours (Cyan, Magenta, Yellow and Black) |
| Printing resolution (dots per inch) | Max. 1200 dpi
|
| Cutting speed | 10 to 300 mm/s (0.4 to 11.8 in./s) |
Blade force (3)
| 30 to 500 gf |
| Blade | Type | Roland CAMM-1 series blade |
| Offset | 0.000 to 1.500 mm (0.0 to 59.1 mil) |
| Software resolution (when cutting) | 0.025 mm/step (0.98 mil/step) |
| Distance accuracy (when printing) (4) (5) | Error of less than ±0.3% of distance travelled or ±0.3 mm (±11.8 mil), whichever is greater |
| Distance accuracy (when cutting) (4) | Error of less than ±0.4% of distance travelled or ±0.3 mm (±11.8 mil), whichever is greater. When distance correction has been performed (when the setting for [CUTTING MENU] - [CALIBRATION] has been made): Error of less than ±0.2% of distance travelled or ±0.1 mm (±3.9 mil), whichever is greater. |
| Repeatability (when cutting) (4) (6) | ±0.1 mm (±3.9 mil) or less |
| Alignment accuracy for printing and cutting (4) (7) | ±0.5 mm (±19.7 mil) or less |
| Alignment accuracy for printing and cutting when reloading media (4) (8) | Error of less than ±0.5% of distance travelled, or ±3 mm (±0.2 in.), whichever is greater |
| Media heating system (9) | Print heater set temperature: 30 to 45°C (86 to 112°F) Dryer set temperature: 30 to 50°C (86 to 122°F) |
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) |
| Power-saving function | Automatic sleep feature |
| Power requirements | AC 100 to 120 V ±10%, 8.0 A, 50/60 Hz or AC 220 to 240 V ±10%, 4.1 A, 50/60 Hz | AC 100 to 120 V ±10%, 5.4 A, 50/60 Hz or AC 220 to 240 V ±10%, 2.7 A, 50/60 Hz |
| Power consumption | During operation | Approx. 1090 W | Approx. 710 W |
| Sleep mode | Approx. 40 W |
| Acoustic noise level | During operation | 63 dB (A) or less |
| During standby | 53 dB (A) or less |
| Dimensions (with stand) | 2945 (W) × 730 (D) × 1310 (H) mm
(116 x 28.8 x 51.6 in.) | 2685 (W) × 730 (D) × 1310 (H) mm
(105.8 x 28.8 x 51.6 in.) | 2070 (W) × 730 (D) × 1310 (H) mm
(81.5 x 28.8 x 51.6 in.) |
| Weight (with stand) | 197 kg (434 lb.) | 180 kg (397 lb.) | 147 kg (324 lb.) |
| Environment | Power on | Temperature: 20 to 32°C (68 to 90°F), humidity: 35 to 80%RH (no condensation) |
| Power off | Temperature: 5 to 40°C (41 to 104°F), humidity: 20 to 80%RH (no condensation) |
| Included items | VersaWorks 6 RIP Software, exclusive stands, power cable, media clamps, media holders, replacement blade for separating knife, manuals etc. |
